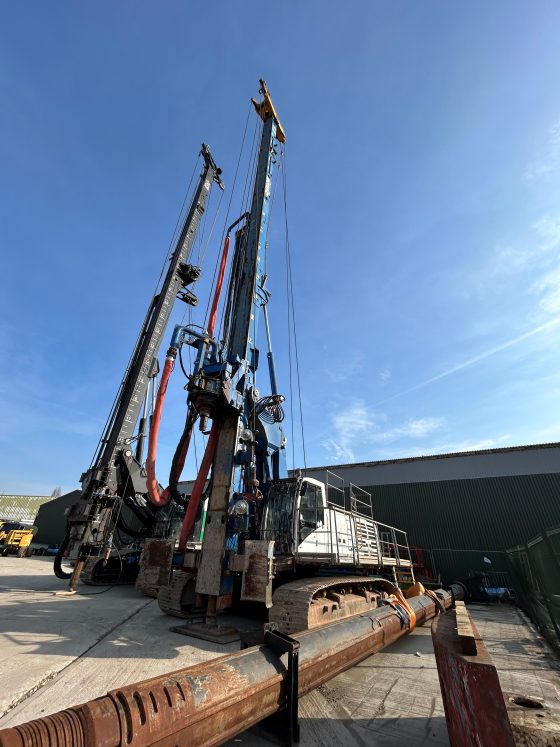

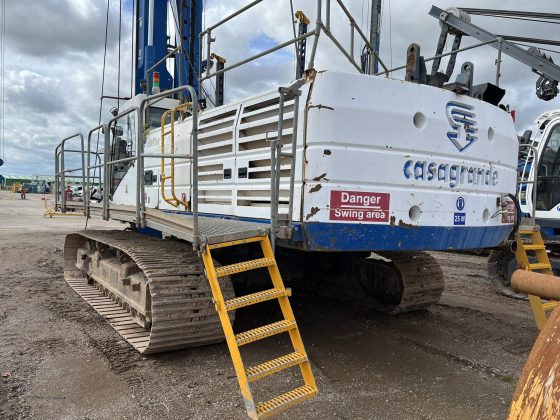

USED Casagrande B250 HD (11913)

Used B250-3 in CFA-Long Manufacture Date 23-07-2007
Serial Number B250ZX0204
Engine Hours 5892 + 2481 recorded Engine Serial Number 9167066
B250-3 CFA Basic machine Consisting of:-
-Heavy duty undercarriage with hydraulically extendable tracks 3000 – 4400mm
-Set of steel track pads, 900mm wide
– Fabricated steel upper structure mounted on heavy duty 360º slewing ring with multi-disk swing brakes and mechanical lock
-Diesel fuel tank capacity 500l complete with electric refuelling pump
-Hydraulic system with servo-control distributors
-Operator cabin mounted on anti-vibration blocks complete with heating and protective screens including air conditioning
-Standard counterweight 7200kg
-Deutz diesel engine type BF6M 1015C, 300kw at 2100rpm2 no main hydraulic pumps, 214l/min each + I no auxiliary pump 90l/min
– Main winch, controlled fall, 20t capacity
– Auxiliary winch, controlled fall, 11t capacity
– Parallelogram type mast support complete with lifting and positioning cylinders
– Reinforced rectangular section steel mast consisting of 1 no main element 11.8m long, lower extension element 2.1m long and 3 no upper extension elements 2.6 + 1.8 + 0.36m long complete with manual hinge for transportation
– Rotary head type H25.22, max torque 21.7ton.m, max speed 33rpm, max discharge speed 125rpm with 3 no different selectable torque/ speed settings
– Arrangement for CFA: Rope for main winch, Drive sleeve adaptor for rotary head, 4 Line Suspension bar, hydraulic hose extensions
– Additional lower mast extension element complete with hydraulically operated mast foot V Type jib head for CFA Additional mast extension element, 2m long
– Swivel and swan neck, 125mm diameter – Soilmec Type – modified swanneck bolt pattern
– Long kelly extension, 6m modified bolt pattern for above swivel connection
– Short kelly extension modified for above swivel connection
– Set of steel and rubber concrete pipework, 125mm diameter, flexible pipes include blowout protection
– Casagrande type star cleaner arm hydraulically operated
– Additional 2m mast extension for CFA-L specification Casagrande type V2 depth and verticality instrumentation
– Automatic extraction facility for main winch – Atos control valve for Jean Lutz
– Set of auger guide arms hydraulically operated – Non OEM box and pin Guide insert fitment Additional Items included Sets of auger guides to fit modified machine guide arms, box & pin type sizes 750mm & 900mmAuger Cleaner stars for original Casagrande Star Auger cleaner HUB x 3 Size range 750mm & 900mm *Note: No auger cleaner hub to except standard auger stars, not available.  Need to purchase from Casagrande, original retained as Non OEM 3rd party design in current use across owner fleet.
