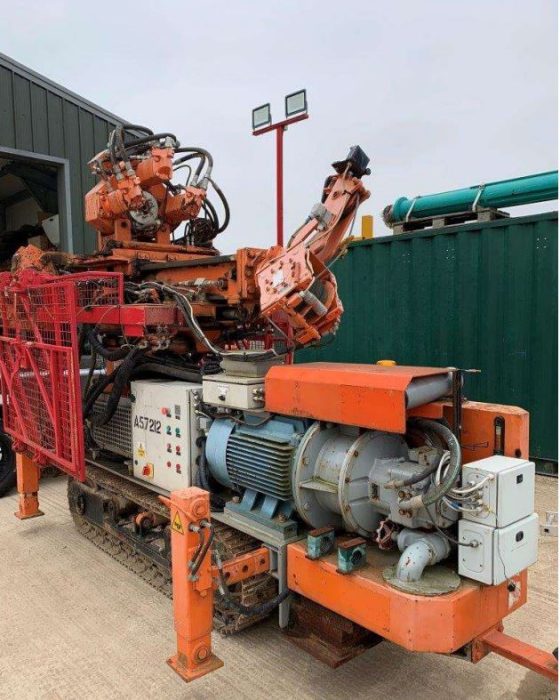

USED Hütte HBR202E Electric Minipiling Rig (11911)

Manufactured in 2011

Serial Number UU0100

250 working hours

Weight approx: 6750Kg

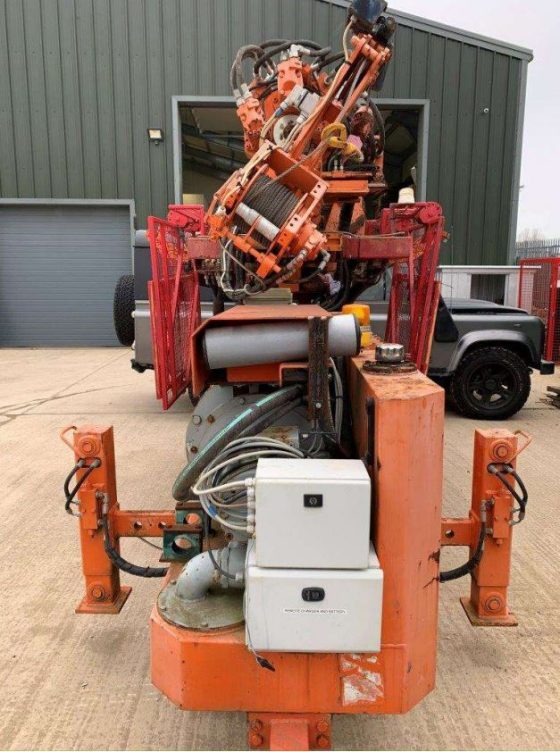

Basic rig consisting of:

Expanding tracks 700-1680mm

Set of stabilisers

Telescopic mast 3370-4620mm, stroke 1200mm

Crowd/extraction force 3.9t/6.4t

Hütte rotary head HG24, 26400Nm max torque, max speed 58rpm, 3 speeds

Clamp 450-660mm dia

Interlocked guards

Winch 1.3t capacity

Power Pack:

Electric motor 75Kw

Main hydraulic pump 210l/min, 250 bar

The HD202 E is a self-contained, fully hydraulic crawler drill rig, CE conforming and especially
designed for difficult drilling conditions which require particularly compact and mobile
equipment. It features a compact and robust design, simple and safe controls and excellent
gradeability as well as high efficiency. In addition, the rig has a modern and operator friendly
hydraulic system and all movements of the drilling unit are easily controllable which ensures
optimum operation even under severe conditions.
The step-less adjustable tracking control system ensures that the machine can be safely moved
even in tight working conditions.

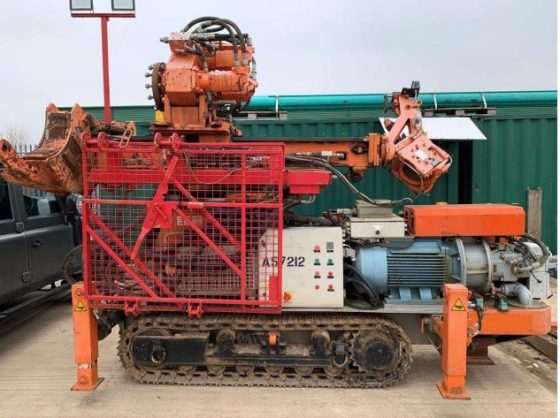

Base Machine:
Electric system: 24 Volt, 110 Ah.
Base frame with hydraulic oil tank (250ls), Slewing column and crawler frames.
Electric motor max. P=75kw.

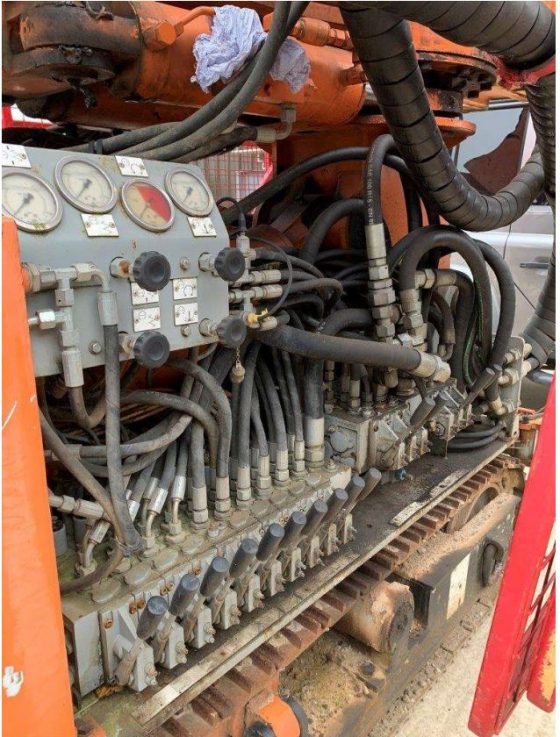

Control panel with all the necessary control valves for:

Rotation I and II Speed

Feed.

Fast Feed.

Clamping.

Emergency Shut Off.

Accident-prevention shut off (wire type).

Feed force control.

Balancing force control (pressure gauge).

Head rotation speed control.

Optional idle functions.
Set up controls for mast kinematics on drill rig.
Pressure valves and control instruments.
Kinematics for set up and alignments of drill mast including 4no hydraulic cylinders with safety check valves.
Boom with a turntable which allows four different operating positions (45 degrees)

Tow Hook.
4no hydraulic stabilizers.
Crawler Tracks.
Crawler tracks mounted on base frame with telescopic adjustment, min width 700mm, max width 1680mm.

Total length crawler – 2.320mm.

Tracking speed – 0 – 1.2km/hr.

Lower rollers – 4 section.

Track shoe width – 220mm.

Ground pressure – 0.94 kg/cm2.
Hydraulic System:
1no hydraulic pump Q, max flow 210l/min for tracking, rotation and all cylinder functions.
2no hydraulic pumps with Q=2 x 20l/min for oil cooler and pilot control.
Oil-air-cooling system, hydraulically powered with automatic variable fan speed.
Low maintenance trolley slide:
With central chain for fitment of rotary head type HG24.
Rotary Head type HG24.

Max speed 58rpm.

Max torque 2712NM.

Max working pressure 250bar.

Flow rate 90-200 l/min.

With 2” flushing connection.
Trip wire shut-off on drill mast (Europe).
Fire extinguisher.
Safety Signal (yellow light and horn) for driving of the rig.
